Model

TMBW30-400

Others Specifications

  • Efficiency

    • Permeate Flow: 11500 GPD (43.05 m³/d)
    • Salt Rejection: 99.7%
  • Type

    • Configuration : Spiral Wound
    • Active Area: ft² (m²) 400 (37.2)
  • Application Data

    • Applied Pressure : psig (bar) 600 (41)
    • Maximum Operating Temperature : °F(°C) 113 (45)
    • Maximum Feed Flow Rate: gpm(m³/h) 85 (19)
    • Maximum Pressure Drop : psig(bar) 15 (1.0)
    • pH Range, Continuous (Cleaning) : 2-11 (1-13)
    • Maximum Feed Silt Density Index : SDI < 5
    • Maximum Chlorine Concentration: < 0.1 ppm

CLICK TO DOWNLOAD DATA-SHEET

Product Description

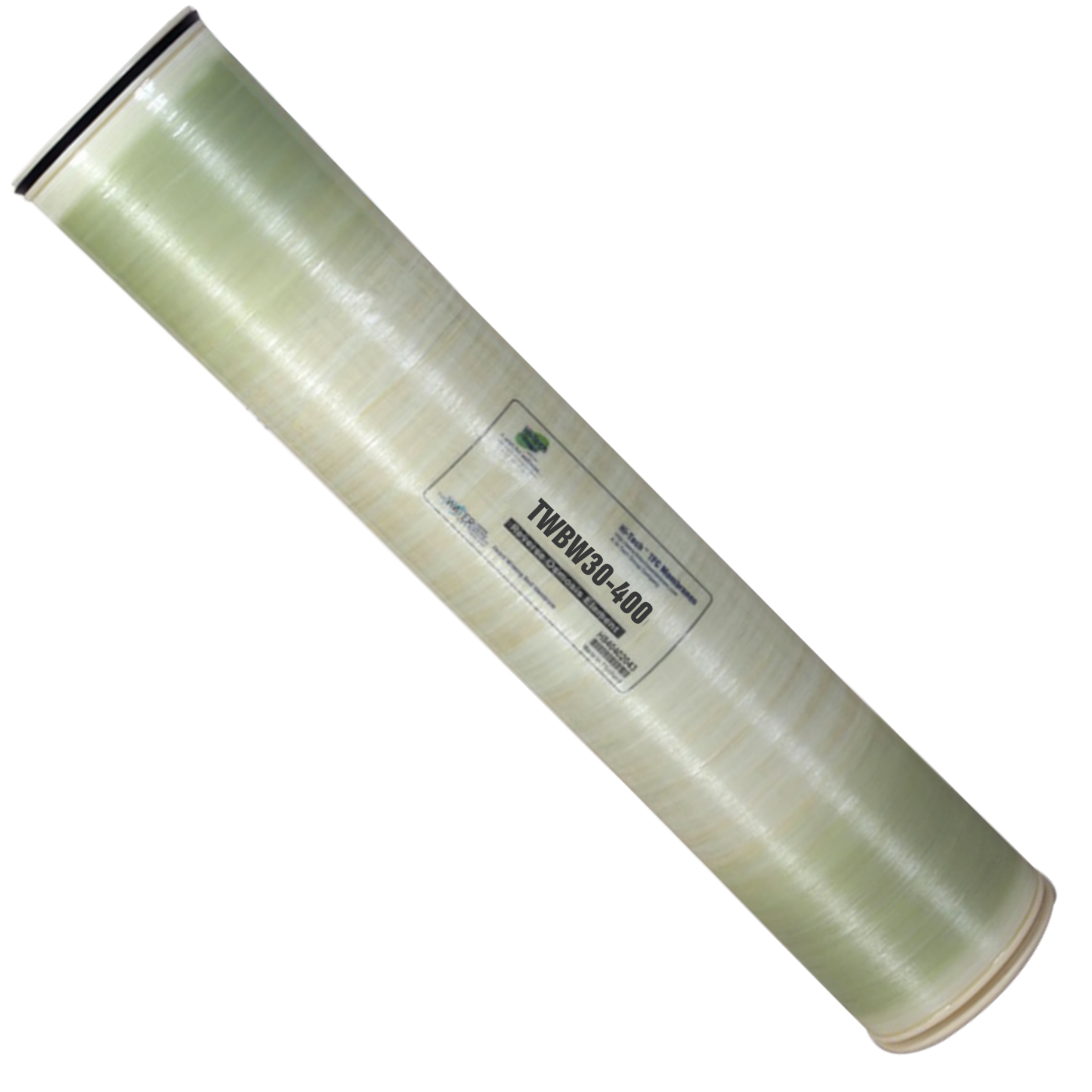

Hi-Tech TMBW30-400 RO membrane elements is made by the most advance technique polyamide RO membrane sheets and combined with experience on the process of rolling membranes for years.

Hi-Tech membrane performance is excellent and stable exceptionally. Covering a complete range from 50 GPD to 11500 GPD.

8040 membrane

TMBW30-400 RO Membrane Features:

  • Uses the most advanced membrane film technology and manufacturing processes
  • Provides high rejection stability even with high TDS manufactured in our ISO 9001:2008 Certified Facilities,
  • Less fouling, Less frequency cleaning and More consistent
  • 100% Performance and Quality Tested
  • Backed by our Experienced Technical Support Staff
  • High Quality for Consistent and Reliable Performance
  • Standard dimensions to fit in commonly available housings
  • Lower consumption of chemical and longer life

Applications

  • Restaurants
  • Aquariums
  • Whole House
  • Office
  • Institutions
  • Hotels
  • Hospitals
  • Spot Free Rinse/Car Wash
  • Labs
  • Pharmaceutical
  • Humidification
  • Misting
  • Manufacturing
  • Rinse Water
  • Bottled Water
  • Beverage
  • Food Processing
  • Ice Makers
  • Commercial Water Treatment
  • Wide Variety of Other Applications
