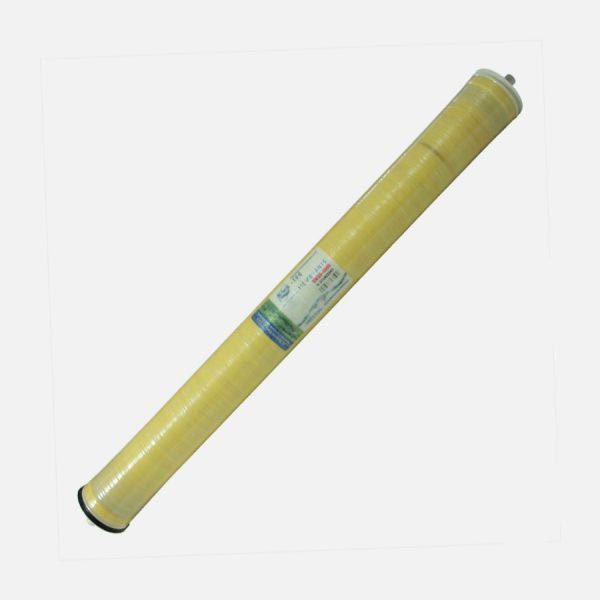

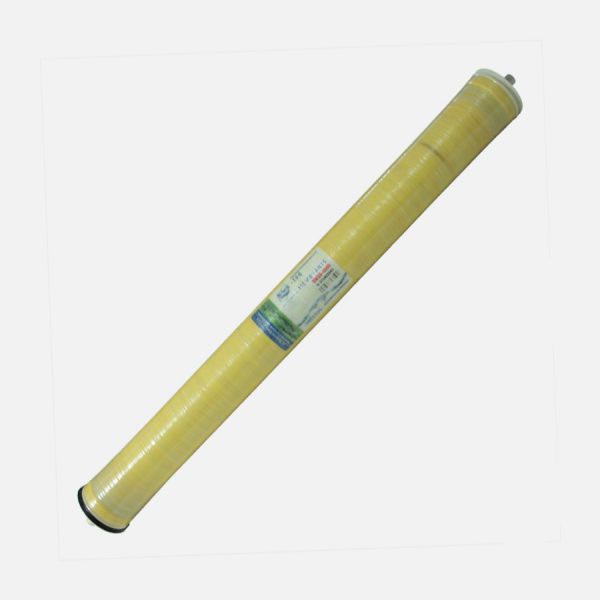

Model

BW30-4040

Others Specifications

  • Efficiency

    • Permeate Flow: gpd (m³/d) 2400 (9.1)
    • Salt Rejection: % 98 – 99
  • Type

    • Configuration : Polyamide Thin Film Composite
    • FRP : Epoxy – Vinylester
    • Active Area: ft² (m²) 81 (7.5)
  • Application Data

    • Applied Pressure : psig (bar) 225 (15.5)
    • Maximum Operating Temperature : °F(°C) 113 (45)
    • Maximum Feed Flow Rate: gpm(m³/h) 16 (3.6)
    • Maximum Pressure Drop : psig(bar) 15 (1.0)
    • pH Range, Continuous (Cleaning) : 2-11 (1-12)
    • Maximum Feed Silt Density Index : SDI < 5
    • Maximum Chlorine Concentration: < 0.1 ppm

CLICK TO DOWNLOAD DATA-SHEET

Product Description

Hi-Tech BW30-4040 Industrial RO membrane elements is made by the most advance technique polyamide RO membrane sheets and combined with experience on the process of rolling membranes for years.

Hi-Tech membrane performance is excellent and stable exceptionally. Covering a complete range from 50GPD to 400GPD. Application Data Applied Pressure : psig (bar)225 (15.5)225 (15.5)225 (15.5)

Hi-Tech Membrane BW30 – 4040 Hi-Tech Membrane CP - 4040Hi-Tech Membrane CP – 4040 Hi-Tech Membrane ES - 4040Hi-Tech Membrane ES – 4040
Model Hi-Tech Membrane BW30 – 4040 Hi-Tech Membrane CP – 4040 Hi-Tech Membrane ES – 4040

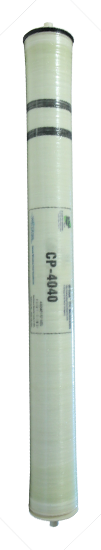

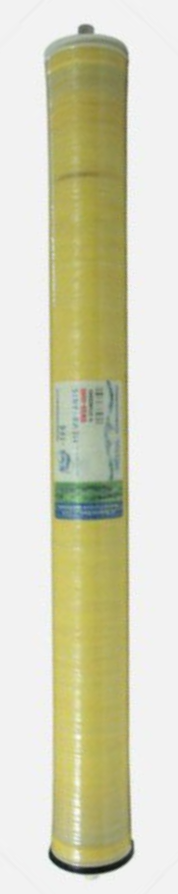

Photo Hi-Tech Membrane BW30 - 4040 hi-tech-membrane-cp-4040-small Hi-Tech Membrane ES - 4040
Efficiency Permeate Flow: gpd (m³/d) 2400 (9.1) 2400 (9.1) 2650 (10.0)
Salt Rejection: % 98 – 99 98 – 99 98 – 99
Type Configuration Spiral Wound Spiral Wound Spiral Wound
FRP Epoxy – Vinylester Epoxy – Vinylester Epoxy – Vinylester
Active Area: ft² (m²) 85 (7.9) 85 (7.9) 80 (7.5)
Maximum Operating Temperature : °F(°C) 113 (45) 113 (45) 113 (45)
Maximum Feed Flow Rate: gpm(m³/h) 16 (3.6) 16 (3.6) 16 (3.6)
Maximum Pressure Drop : psig(bar) 15 (1.0) 15 (1.0) 10
pH Range, Continuous (Cleaning) 2-11 (1-12) 2-11 (1-12) 2-10 (1-12)
Maximum Feed Silt Density Index SDI < 5 SDI < 5 SDI < 5
Maximum Chlorine Concentration < 0.1 ppm < 0.1 ppm < 0.1 ppm

BW30-4040 RO Industrial Membrane Features:

  • Uses the most advanced membrane film technology and manufacturing processes
  • Provides high rejection stability even with high TDS manufactured in our ISO 9001:2008 Certified Facilities,
  • Less fouling, Less frequency cleaning and More consistent
  • 100% Performance and Quality Tested
  • Backed by our Experienced Technical Support Staff
  • High Quality for Consistent and Reliable Performance
  • Standard dimensions to fit in commonly available housings
  • Lower consumption of chemical and longer life

Applications

  • Restaurants
  • Aquariums
  • Whole House
  • Office
  • Institutions
  • Hotels
  • Hospitals
  • Spot Free Rinse/Car Wash
  • Labs
  • Pharmaceutical
  • Humidification
  • Misting
  • Manufacturing
  • Rinse Water
  • Bottled Water
  • Beverage
  • Food Processing
  • Ice Makers
  • Commercial Water Treatment
  • Wide Variety of Other Applications
