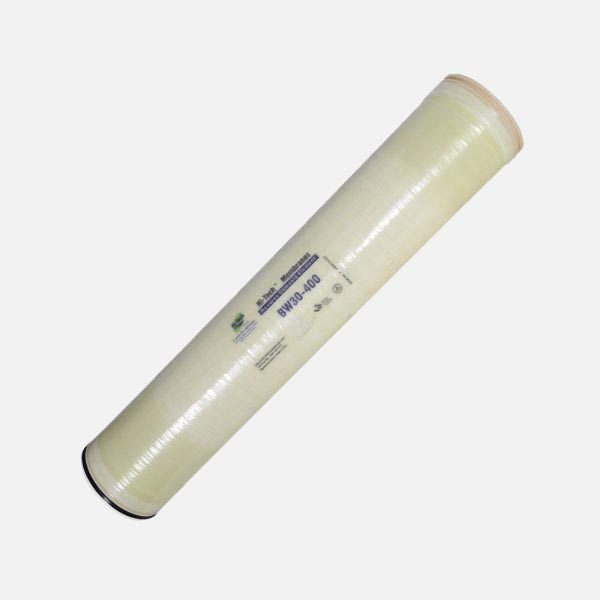

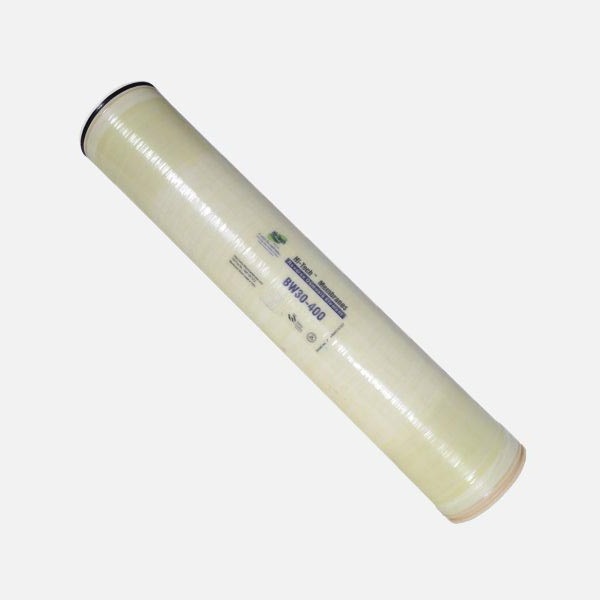

BW30-400 RO MEMBRANE
hi-tech-membrane-bw30-400-2hi-tech-membrane-bw30-400-1

Model

BW30-400

Others Specifications

  • Efficiency

    • Permeate Flow: gpd (m³/d) 10500 (40)
    • Salt Rejection: % 98 – 99
  • Type

    • Configuration : Polyamide Thin Film Composite
    • FRP : Epoxy – Vinylester
    • Active Area: ft² (m²) 400(37)
  • Application Data

    • Applied Pressure : psig (bar) 600(41)
    • Maximum Operating Temperature : °F(°C) 113 (45)
    • Maximum Feed Flow Rate: gpm(m³/h) 85(19)
    • Maximum Pressure Drop : psig(bar) 13 (0.9)
    • pH Range, Continuous (Cleaning) : 2-11 (1-13)
    • Maximum Feed Silt Density Index : SDI < 5
    • Maximum Chlorine Concentration: < 0.1 ppm

Product Description

Hi-Tech BW30-400 RO membrane elements is made by the most advance technique polyamide RO membrane sheets and combined with experience on the process of rolling membranes for years.

Hi-Tech membrane is awarded NSF certificate (ANSI/NSF Standard 58). Performance is excellent and stable exceptionally. Covering a complete range from 50GPD to 400GPD.

BW30 - 400 RO Membrane Hi-Tech Membrane BW30 – 400 Hi-Tech Membrane ES - 4040Hi-Tech Membrane ES – 4040 hi-tech-membrane-bw30-4021Hi-Tech Membrane BW30 – 4021 hi-tech-membrane-bw30-2540Hi-Tech Membrane BW30 – 2540
Model Hi-Tech Membrane BW30 – 400 Hi-Tech Membrane ES – 4040 Hi-Tech Membrane BW30 – 4021 Hi-Tech Membrane BW30 – 2540
Photo Hi-Tech Membrane BW30 - 400 Hi-Tech Membrane ES - 4040 Hi-Tech Membrane BW30 - 4021 Hi-Tech Membrane BW30 - 2540
Performance Stable Desalination % 98.7 98 98 97
Min. Desalination % 98 97 97 97
Mean Permeable Flow gpd (L/d) 10500(40) 2650(10.0) 800(3.0) 850(3.2)
Active Film Area ft2(m2) 400 (37) 80(7.5) 36 (3.3) 28 (2.6)
Test Conditions Pressure 600psig(41Mpa) 300psig(20.7Mpa) 225psig(15.5Mpa) 225psig(15.5Mpa)
Water Temperature : (°C) 25 25 25 25
Concentration(NaCl) 2000ppm 2000ppm 2000ppm 2000ppm
Water PH 7.5 6.5 to 7.5 6.5 to 7.5 7.5
Recovery Rate % 15 15 15 15
Operating Conditions Max. Operating Pressure 600psi(4.2Mpa) 600psi(4.2Mpa) 600psi(4.2Mpa) 600psi(4.2Mpa)
Max. Feed Water Temp. (°C) 45 45 45 45
Max. Feed Water Silt Density Index (SDI) 5 5 5 5
Feed Water Chlorine Tolerance < 0.1ppm < 0.1ppm < 0.1ppm  < 0.1ppm
Feed Water PH Range, Continuous Operation 2 to 11 2 to 10 2 to 11  2 to 11
Feed Water PH Range, Short-Term Cleaning 1 to 13 2 to 12 1 to 13 1 to 13

BW30-400 RO Membrane Features:

  • Uses the most advanced membrane film technology and manufacturing processes
  • Provides high rejection stability even with high TDS manufactured in our ISO 9001:2008 Certified Facilities,
  • NSF/ANSI58 standard
  • Less fouling, Less frequency cleaning and More consistent
  • 100% Performance and Quality Tested
  • Backed by our Experienced Technical Support Staff
  • High Quality for Consistent and Reliable Performance
  • Standard dimensions to fit in commonly available housings
  • Lower consumption of chemical and longer life

Applications

  • Restaurants
  • Aquariums
  • Whole House (Residential)
  • Office
  • Institutions
  • Hotels
  • Hospitals
  • Spot Free Rinse/Car Wash
  • Labs
  • Pharmaceutical
  • Humidification
  • Misting
  • Manufacturing
  • Rinse Water
  • Bottled Water
  • Beverage
  • Food Processing
  • Ice Makers
  • Commercial Water Treatment
  • Wide Variety of Other Applications
